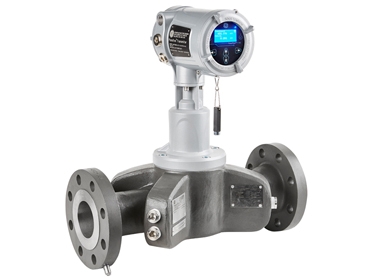

PanaFlow Z3 Ultrasonic Liquid Flow Meter
The PanaFlow Z3 is the latest of a new generation of Panametrics ultrasonic flow meters. It is a three-path wetted meter designed specifically for dependable, accurate and repeatable flow measurement of process liquids. With a sleek industrial design and ultra-reliable electronics, it provides a top-of-the-line choice for process and industrial applications.
The Z3 brings together Panametrics ultrasonic flow meter expertise with the advantages of ultrasonics for a high-performance, low cost of ownership measurement solution for process liquids. Unlike other flow technologies, the ultrasonic PanaFlow Z3 does not require maintenance since it does not have any obstruction in the flow path or any moving parts to be damaged by flowing liquid. It is not affected by changing process conditions (temperature, pressure and conductivity) and so does not drift over time, eliminating the requirement for periodic calibration.
Features and Benefits
PanaFlow high-end design
• New, highly reliable XMT1000 electronics
• Cast, compact flowcell
• Three-path measurement for accuracy and redundancy
• Integrated transducer/buffer system allows for removal and replacement without shutting down the process
• Local or remote mount electronics for installation flexibility
• Hazardous area certified
The advantages of ultrasonic flow measurement
• No pressure drop, no restriction in the pipe and no moving parts
• Minimal maintenance or upgrades
• Bi-directional measurement
Applications
• Process control and monitoring
• Allocation measurement
• Batching and blending
• Transfer lines
• Cooling water lines
• Pipeline metering
• Loading/unloading
• Plant utilities
• Tank farms
• Irrigation
• Crude refined products
Industries
• Upstream, midstream and downstream oil and gas
• Chemical
• Petrochemical
• Power generation
• District energy
• Water/waste water
• District energy/HVAC
PANAFLOW Z3
PANAFLOW Z3
<
>
Reliable flow measurement that is easy on your budget
The PanaFlow Z3 is a three-path, wetted ultrasonic flow meter that brings together all of the advantages of ultrasonic technology at a very affordable value. Unlike other flow measurement technologies, the PanaFlow Z3 does not require maintenance since it does not have any obstruction in the flow path that could clog the process line or moving parts to be damaged by the flowing fluid.
Also, due to the inherent nature of our ultrasonic flow measurement, the PanaFlow Z3’s measurement is not affected by changing process conditions (temperature, pressure, and conductivity) and does not drift over time, which eliminates the requirement for periodic calibration. Without requirements for maintenance and calibration, the PanaFlow Z3 offers a low cost of ownership and performance.
