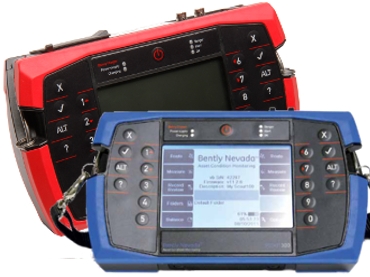

Bently Nevada SCOUT & vbSeries Portable Vibration Analyzers
GE's SCOUT and vbSeries portable vibration analyzer instruments are built to robust professional standards, making them the first choice for numerous leading companies around the world. Featuring GE's powerful, condition monitoring software, this tiered instrument range varies in features and price, enabling you to select the model with the set of features you require. SCOUT models are certified for an ATEX Zone 2 hazardous rating, whereas the vbSeries models are rated for CSA Class 1, Division 2.
Features and Benefits
• Accuracy, intuitive operation, ease of use, and outstanding storage
capacity to ensure a premium return on investment
• The power and convenience of dual/multi-channel measurement and
dual-plane balancing for quick diagnosis and correction
of dynamic imbalance
• Tachometer input (with Keyphasor® tachometer mode)
• Seamless integration with GE's System 1 Condition Monitoring and • Diagnostic software
• ATEX and IECEx Zone 2 Hazardous location certification (SCOUT
100/104-Ex) and CSA Class 1 Division 2 Hazardous location certification
(vb7/8)
• Wide measurement range (1,000 g, 25,000 mm/s, 2,500mm)
• Laser speed sensor for automatic capture of machine running speed
• Unique Commtest 6PackTM recording system
• 6,400 to 12,800 lines FFT resolution
• 1GB memory and virtually unlimited spectra storage
• Options to add Flex features
• 5 year instrument warranty
Features unique to the advanced SCOUT 140-Ex and vb8 vibration analyzers include:
• Upgradable Proflash system and free firmware updates
• Modal Impact Testing and Cross Channel Spectrum (ODS)
• Ability to export data in Universal File Format (UFF) for additional
analysis in ODS software such as Vibrant Technology ME'scope
• Support for acceleration, velocity, displacement, DC-coupled, current
and voltage output sensors
• Cable Test mode
Bently Nevada SCOUT & vbSeries Portable Vibration Analyzers
Bently Nevada SCOUT & vbSeries Portable Vibration Analyzers
<
>
BENTLY NEVADA SCOUT
Model
Accelerometer, Velocity, Displacement, Current
Sensor input
16 V peak-peak
AC coupled range
0 V to 20 V, -10 V to 10 V, -20 V to 0 V
DC coupled ranges
2 x BNC (CH1/CH2)
Connectors
24-bit ADC
Analog to digital conversion
0 mA or 2.2 mA (configurable), 24 V maximum
Sensor excitation current
Warns if short circuit or not connected
Sensor detection
Laser sensor with reflective tape sold as an
extra accessory with Balancing Kit, not included
as standard
Sensor
10 cm to 2 m nominal
Laser sensor range
Product Info
Documentation
Case Studies
Training & Support
Video
How does it work?
Based on a design with a proven track record of quality and innovation, the all-new vb and SCOUT series data collectors, analyzers and balancers have been engineered from the ground up to offer leading-edge reliability, accuracy and usability. The vb and SCOUT platforms bring industry-leading
Bently Nevada condition monitoring expertise to the world of portable data collection and analysis, giving you access to a dependable, efficient, and
cost-effective condition monitoring solution that is deployable across your entire plant.
