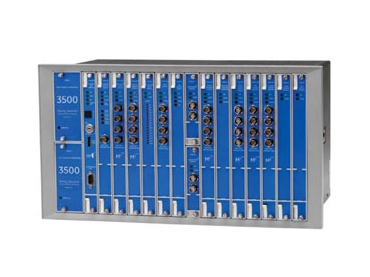

Bently Nevada 3500
GE's Bently Nevada 3500 Monitoring System provides continuous, online monitoring suitable for machinery protection and asset condition monitoring applications. It represents our most capable and flexible system in a traditional rack-based design and offers numerous features and advantages not provided in other systems.
Features and Benefits
• The industry’s most extensive selection of machinery measurement
parameters combined with software configuration for virtually
all monitor options
• Maximum reliability with extensive self-checking and fault tolerant
design features
• Rugged design that is fully compliant with the American Petroleum
Institute’s Standard API 670 and API 618 requirements, Canadian
Standards Association (CSA), Factory Mutual (FM), GOST, ATEX,
and CE requirements
• Compatibility with a variety of locally or remotely mounted displays
• Flexibility for configuration with various levels of redundancy, ranging
from simplex modules to dual power supplies to redundant relay modules
with wide ranging and flexible logical operator options for configuring
complex relay logic as desired
• An Ethernet port in the 3500/22M Rack Interface Module and a single
network cable to communicate with GE's System 1® software, connecting
condition monitoring and diagnostic software
• Optional DNV and Class NK certifications for maritime applications, and
communication gateway module to connect to plant control and
automation systems
• TÜV Functional Safety Certification that can be supplied for applications
requiring up to Safety Integrity Level (SIL) 2, when the product is used as
part of a safety instrumented system
Bently nevada 3500
bently nevada 3500
<
>
The 3500/15 Power Supply can be ordered for ac or dc input power, providing compatibility with voltage sources worldwide. Line noise filters are standard. The 3500 Rack can operate from a single supply, or dual supplies can be used to provide redundancy for situations that cannot tolerate power interruption.
Dual supplies reside in the upper and lower positions of the left-most rack slot. Redundant supplies can use separate voltage sources. For example, the primary (lower) supply can operate with 120 Vac power while the backup (upper) supply can be powered from an uninterruptible 24 Vdc source.
Product Info
Documentation
Case Studies
Training & Support
Video
How does it work?
Measurement Principle Manometric using pressure sensor Display Digits 3 LED, 7mm high Memorised Data 5 BOD values at 24hr intervals Scales 90,250,600,999 ppm BOD higher values, after dilution Power Supply 2 lithium battery (250mAh) (up to 2 yrs life) Safety Class 3 IEC 1010 Protection Degree IP 44 IEC 529 Admitted Storing Temperature -25 to +65°C Weight 80g
