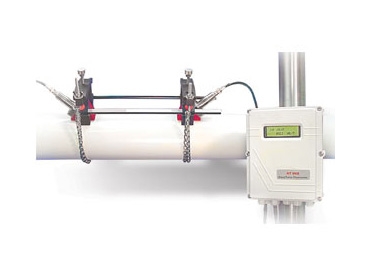

AquaTrans AT868 Ultrasonic Liquid Flow Meter
The Panametrics AquaTrans AT868 ultrasonic liquid flow meter is a rugged, low-cost transmitter package that can be installed right at the process measurement point. It is designed specifically for municipal applications such as water, wastewater and sewage. Setup and service can be done via the transmitter’s internal keypad or by connecting the AT868 to a laptop PC and using BHGE's instrument interface software. Accuracy is typically 1% to 2% of reading with clamp-on transducers, and better than 1% with wetted transducers.
Features and Benefits
• Noninvasive clamp-on or wetted transducers
• Liquid flow range 0.1 to 40 ft/s (0.03 to 12.2 m/s)
• Velocity, volumetric and totaled flow
• One analog output and one frequency/pulse totalizer output standard
• Internal keypad for field programming
• Low-cost package
• Turndown ratio of 400 to 1
• Obstructionless measurement causes no pressure drop
and no contamination
Applications
The AquaTrans AT868 liquid flow transmitter is a complete ultrasonic flow metering system for measurement of:
• Potable water
• Wastewater
• Sewage
• Discharge water
• Treated water
• Cooling and heating water
• Other liquids
AQUATRANS AT868
AQUATRANS AT868
<
>
Liquid Flow Ultrasonic Transmitter
The AquaTrans AT868 liquid flow ultrasonic transmitter combines state-of-the-art flow measurement capability with a low-cost transmitter package that can be installed right at the process measurement point. It’s designed specifically for
water and wastewater applications in full pipes. The all-digital AquaTrans AT868 has no moving parts and requires minimal maintenance. An onboard microprocessor uses patented Correlation Transit- Time™ technology for long-term, drift-free operation.
Automatic adjustment to changing fluid properties and dynamically configured operating software simplify programming.
